Descrizione

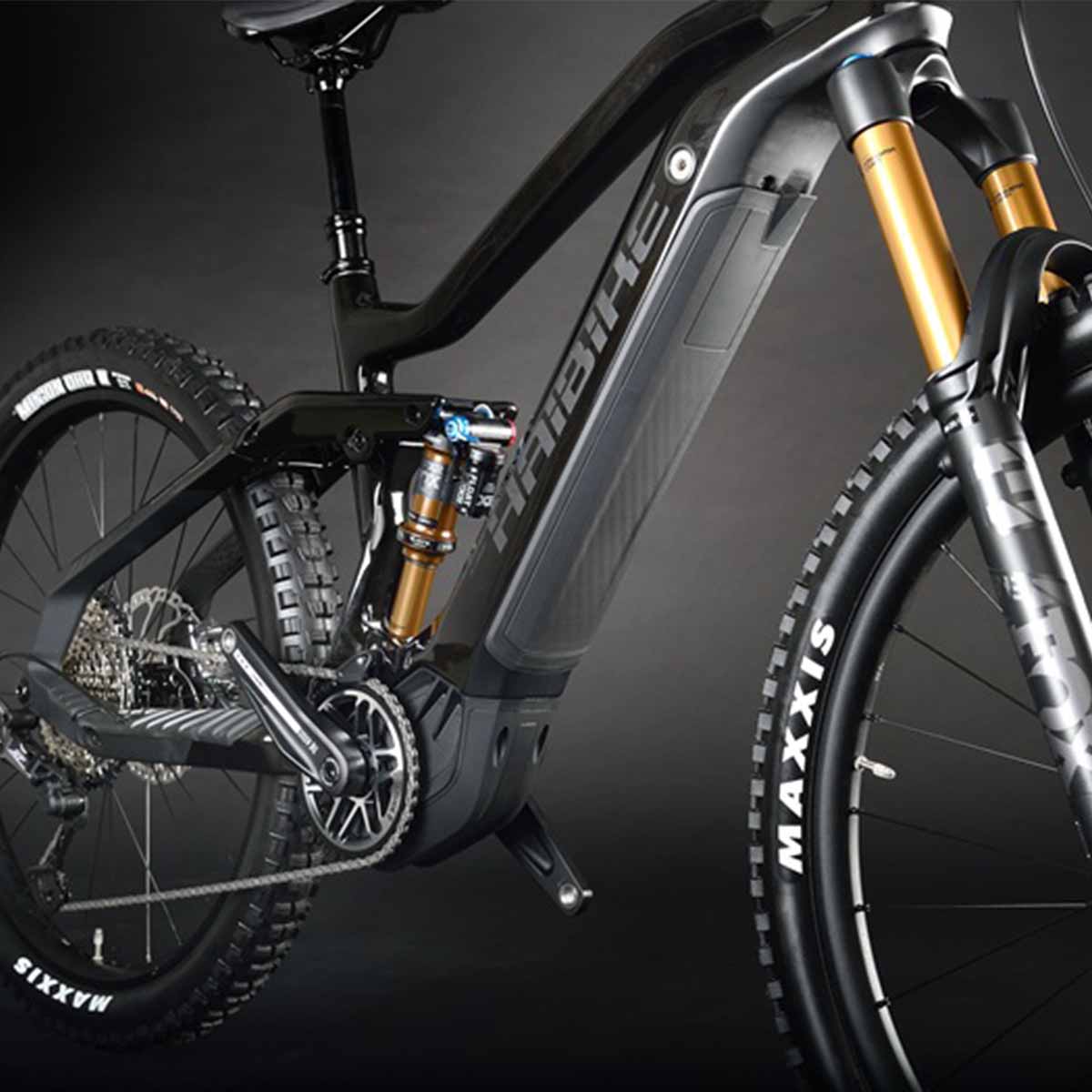

La nuova ALLMTN 7, realizzata in robusto e leggero full carbon, ti offre ePerformance senza compromessi sul sentiero.
CARATTERISTICHE TECNICHE
ENGINE Yamaha, PW-X2, 250W, 80 Nm, 25 km/h
DISPLAY Yamaha, Side Switch, 1.7″ LCD, 7 functions
BATTERY Yamaha, 600 Wh
FRAME FAMILY Haibike, XDURO AllMtn i600, Carbon
FORK FOX, 38 Factory Kashima, Air, Travel= 160 mm
DAMPER FOX, DPX2 Factory Kashima, Air, Trunnion Mount M8x30
CRANK ARM Haibike Components, The Crank +++, Aluminium
BRAKE (FRONT) Shimano, Deore XT M8120, 203 mm
BRAKE (REAR) Shimano, Deore XT M8120, 203 mm
TUBE Presta valve
RIM Syntace, V30i, with eyelets, hollow rim, Aluminium
CLAMPING RING Internal hexagon, 34.9 mm
REAR DERAILLEUR Shimano, Deore XT M8100 Shadow Plus
SHIFT LEVER Shimano, Deore XT M8100, Trigger switch, 12 Speed
BOTTOM BRACKET Integrated in the motor
SPROCKET Shimano, SLX M7100, 10 – 51 teeth
CHAIN Shimano, SLX M7100
CHAINRING Haibike Components, Aluminium, 38 teeth
BRAKE LEVER Shimano, Deore XT M8100, Aluminium
BRAKE DISC (FRONT) Shimano, RT66 203
BRAKE DISC (REAR) Shimano, RT66 203
TYRE Maxxis, Minion DHF II, 63-622, 29″ x 2.5″
FRONT WHEEL HUB Syntace, V Hub, 6-bolt standard
REAR WHEEL HUB Syntace, V Hub, 6-bolt standard
SPOKES Syntace, Straight Pull butted
HANDLEBAR Haibike Components, TheBar +++ Gravity , 780 mm
GRIPS Haibike, MTB grips
STEM Haibike Components, TheStem 2, A-head, Bar bore: 31.8 mm
HEADSET Acros, BlockLock , Aluminium
SADDLE Selle Royal Vivo 1216HRN
SEAT POST Haibike Components, Dropper-Post Remote 31.6, Aluminium, Telescope
PEDALS Freeridepedal , Aluminium, with Reflector
PERMITTED TOTAL WEIGHT 120.0 kg
TYRE (REAR, IF DIFFERENT) Maxxis, Minion DHR II, 71-584, 27.5″ x 2.8″
RIM (REAR, IF DIFFERENT) Syntace, V35i, Aluminium, with eyelets, hollow rim
Marca: Haibike
